Leica DA transmitters

DA transmitter designed to work with the DD locator family

The Leica DA signal transmitters apply a signal onto underground cables or pipes that may not carry a detectable signal. The Leica DD SMART cable locators can then be used to locate the signal from the Leica DD signal transmitter. The DA signal transmitters are compact, robust and easy-to-use. The have been designed in conjunction with the DD SMART cable locators to easily and accurately avoid, trace or locate buried cables and pipes.

  • To improve the detection success.
  • To trace the route of a utility.
  • To make a depth or current measurement.

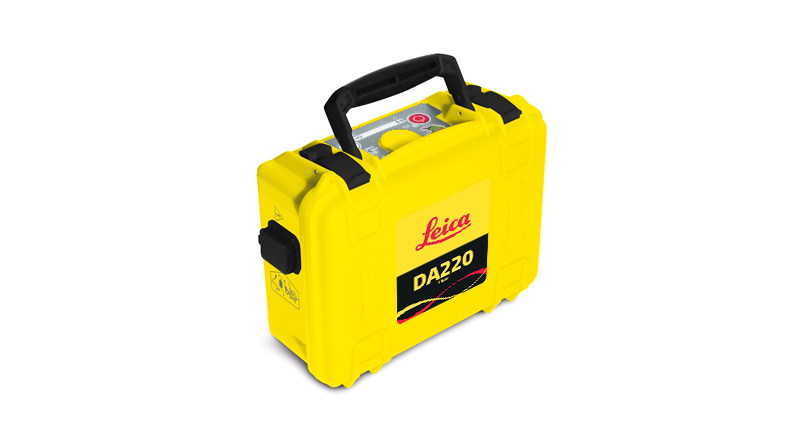

DA220 Signal Transmitter


  • 1 Watt or 3 Watt options.
  • Compatible with; DD120 Locator DD220 SMART Locators.

Trace frequencies


  • 8kHz, 33kHz, 131kHz and combined (33 kHz +131 kHz)
  • Rechargeable Li-Ion battery as standard
  • IP67 rating
  • 3 Year warranty

DA230 Signal Transmitter


  • 1 Watt or 3 Watt options
  • Compatible with; DD130 Locator DD230 SMART Locators.

Trace frequencies


  • 512Hz, 640Hz, 8kHz, 33kHz, 131kHz and combined (33 kHz +131 kHz)
  • Rechargeable Li-Ion battery as standard
  • IP67 rating
  • 3 Year warranty

DA175 Signal Transmitter


  • 1 Watt option.
  • Compatible with DD120, DD130 and DD175 locators
  • Trace frequencies: 512Hz, 640Hz, 8kHz, 33kHz and combined (8kHz + 33kHz)
  • 4x LR20 Alkaline Battery
  • IP67 rating
