WiSen Wireless Geotechnical Monitoring Systems

Simple installation. Minimal configuration. Easy automation.

WiSenMeshWAN Wireless Monitoring Systems

The WiSenMeshWAN® system offers wireless dynamic and autonomous data acquisition from geotechnical sensors using edge technology. Automated geotechnical sensor measurement, which utilises long range wireless radio nodes and a SmartGateway, allows you to focus on more challenging tasks instead of manual data acquisition and logging.

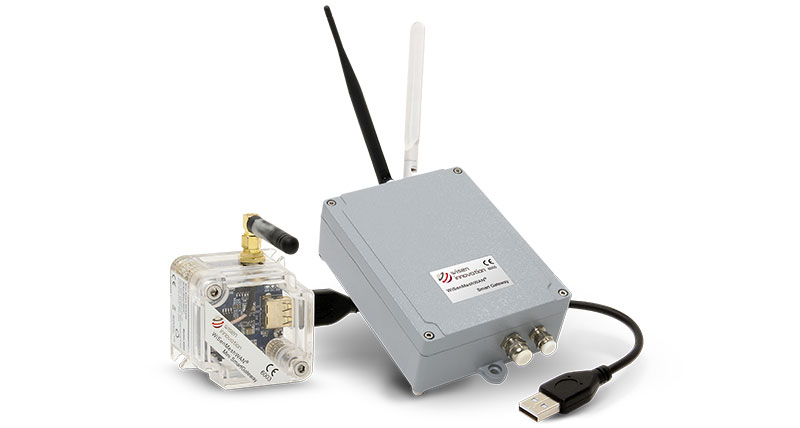

WiSenMeshWAN® sensor nodes are transmitters and receivers that create a self-forming dynamic radio mesh network which sends data to a SmartGateway. Users have full, remote control over the system via direct, triggered, or scheduled changes enabling dynamic measurement and reporting rates from 1Hz to twice a week.

WiSenMeshWAN® product portfolio is fully compatible with Leica Geosystems’ and Hexagon’s monitoring solutions enabling data 24/7 for incorporation into Leica GeoMoS or HxGN GeoMonitoring Hub monitoring software.



Form an extensive understanding with a complete monitoring solution and create homogeneous systems using geodetic, geotechnical & InSAR data.

Previous Next

Minimal configuration, maximum integration


Sensors are plug and play, working straight out of the box with a self-configuring radio network. Multiple interface options allow for integration with 3rd party sensors from leading geotechnical manufacturers (analog / digital / vibrating wire interface).

Self-reliant system


Designed for up to 10 years of maintenance-free use, units are rated IP65 and above with internal power and radio. With their robust industrial enclosures, the units can be mounted in multiple ways, catering to varying needs of your monitoring projects.

Dynamic measurement and reporting


Connected geotechnical sensors and nodes automatically measure and report data at user defined intervals from once a second to twice a week. Configure your system to read at different intervals for specific time periods or change the reading interval based on trigger events.

Wireless sensor network


A fully automated, encrypted, long-range radio network capable of up to 1.5 km between nodes and using data hop technology makes monitoring data collection easy. Add in dynamic radio transmission routing and ground penetration for further enhancement. Data hopping wireless networks are robust yet easy to use for reliable monitoring data acquisition.

Contact us about Monitoring

Get in contact with us for more information about our monitoring solutions.
Get in contact with us for more information about our monitoring solutions.
Contact us
