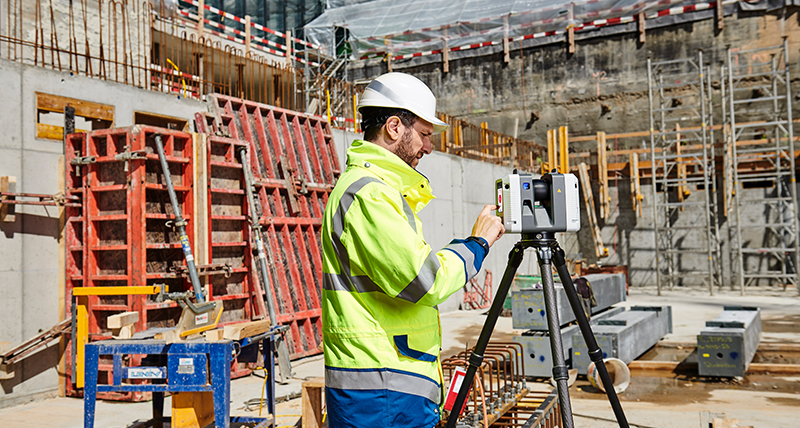

라이카 RTC360 3D 레이저 스캐너
현장에서 자동으로 포인트 클라우드 데이터를 정합하여 신속하게 품질 점검을 수행하며 생산성을 향상시키고 현장에서 보다 정확한 정보로 의사결정을 할 수 있게 해줍니다.
라이카 RTC360 3D 리얼리티 캡처 솔루션은 현장 및 사무실에서 빠르고 정밀한 데이터를 제공하고, 간편하게 조작하며 하드웨어와 소프트웨어를 손쉽게 휴대하여 높은 효율성과 생산성으로 사용자가 3D 환경에서 데이터를 캡처하고 리포트화 합니다. RTC360 3D 레이저 스캐너는 전문가가 정확하고 신뢰할 수 있는 3D 결과물을 사용하여 복잡한 프로젝트를 관리하고 모든 현장의 상황을 발견할 수 있는 솔루션입니다.
- 휴대성이 용이하고 자동화되어 직관성 및 생산성을 극대화하기 위해 설계된 RTC360 솔루션을 통한 고기능 3D 레이저 스캐닝, 실시간 자동정합을 지원하는 라이카 Cyclone FIELD 360 모바일 장치 응용프로그램과 라이카 Cyclone Register 360 소프트웨어와 결합하여 귀하의 업무흐름에 균일하게 3D Model 통합할 수 있습니다.
- 2분이내 HDR 영상을 포함한 스캔 캡처
- 현장에서 수동 조작없이 스캐너가 스스로 이동한 기록을 계산하여, 스캔데이터를 자동으로 정합합니다.
- 계획수립의 개선, 현장의 실상황 반영, 팀 내의 정보공유 향상을 위해 태그가 포함된 스캔 데이터의 질적 향상
Fast
The Leica RTC360 laser scanner makes 3D reality capture faster than ever before. With a measuring rate of up to 2 million points per second and advanced HDR imaging system, the creation of coloured 3D point clouds can be completed in under two minutes. Plus, automated targetless field registration (based on VIS technology) and the seamless, automated transfer of data from site to office reduce time spent in the field and further maximise productivity.
Agile
Small and lightweight, the Leica RTC360 scanner’s portable design and collapsible tripod mean it’s compact enough to fit into most backpacks, ready to be taken anywhere. Once on-site, easy-to-use, one-button operation makes for fast, hassle-free scanning.
Precise
Low noise data allows for better images, resulting in crisp, high-quality scans that are rich in detail and ready for use in a range of applications. Combined with Cyclone FIELD 360 software for automated registration in the field, the Leica RTC360 scanner offers outstanding precision that can be checked on-site.
Registraton in the field
As part of the RTC360 solution, the Cyclone FIELD 360 app links the 3D data acquisition in the field with the laser scanner and data registration in the office with Cyclone REGISTER 360 PLUS. On-site the user can automatically capture, register and examine scan and image data. The user interface combines easy handling of complex calculations with a graphical user guidance that offers a remarkable user experience, also for novice users.
