Leica iCON build: Facade and Exterior Installation
Digital construction tools for installing exterior cladding and facades
As architectural designs become more complex and construction timelines trend ever tighter, it can be a difficult to balance high-accuracy exterior and façade installation with resource management for on-time, on-budget results. Whether you are installing glazing systems, rainscreens, curtain walling, wood elements, or other exterior cladding, Leica iCON build will help you meet these challenges with digital construction tools tailored to improving your existing workflows. Benefit from streamlined checks and adjustments, all the information you need for precise scheduling, and fast and accurate layout for high quality façade and exterior installation.
Understanding Construction: Leading innovations with Leica iCON
The Leica iCON portfolio has been providing simplicity, durability, efficiency and construction-focused solutions for more than 10 years. We have been evolving our building and heavy construction offering to meet your changing needs on site. And we achieved this by understanding construction; understanding what it means to be in the field with you, day in, day out. The world may know us for our innovative solutions, but the thing we're most proud of building is trust.
Get the points you need from IFC data
While using IFC data for your facade and exterior installation work brings many benefits, object data is often not optimized for your point layout needs. With Leica iCON build, create points on an IFC object and choose to automatically apply the same point selection to all similar style of objects. Select, view, and layout only the points you need from the original IFC data, making the installation of channel anchors and other elements easier and faster.
Check, adjust, and schedule before you install
Before layout can begin, checking that concrete slab work matches the design provides the data you need to determine your own offsets and placements, make needed corrections, and coordinating site deliveries of prefabricated elements. With the Leica iCON build Checks app, you can easily assess the positioning and alignment of the work that has come before, ensuring everything is ready or enabling necessary adjustments for accurate fittings.
Faster, high-accuracy layout
Move away from imprecise and time-consuming tape measure layout methods with ICON build’s Layout Points app, which empowers a faster, high-accuracy workflow. Establish control lines, apply offsets, and layout channel anchors or support brackets with features like digital point navigation and colour coded point quality visualisations. Find points faster with the automated turn-to feature that helps orient your total station. Together, these digital tools save significant time and reduce the risk of errors, so you can deliver complete and quality installations on time and budget.
Minimise rework to achieve sustainability goals and ensure your construction project success
Discover how reduce rework with the Leica iCON portfolio
Leica iCON iCR70
Mid-range construction robotic total station for general layout applications.
- Layout lines for footings, pits, and foundations for excavation
- 80% increase in productivity over other conventional layout practices
- 4-button keyboard for simple operation
Leica iCON iCR80
The ultimate construction total station to maximise efficiency on site.
- Ability to layout complex designs
- Especially useful in congested sites with many distractions
- Layout points on blinding layer, such as pipe insert or cut-outs before pouring concrete
Leica AP20 AutoPole
A revolutionary smart system for Leica robotic total stations.
- Removes the last analogue step in the robotic total station workflow - the manual pole
- Faster and more reliable layout with fewer mistakes
- Delivers a true digital construction workflow using TargetID, PoleHeight, and Tilt Compensation features

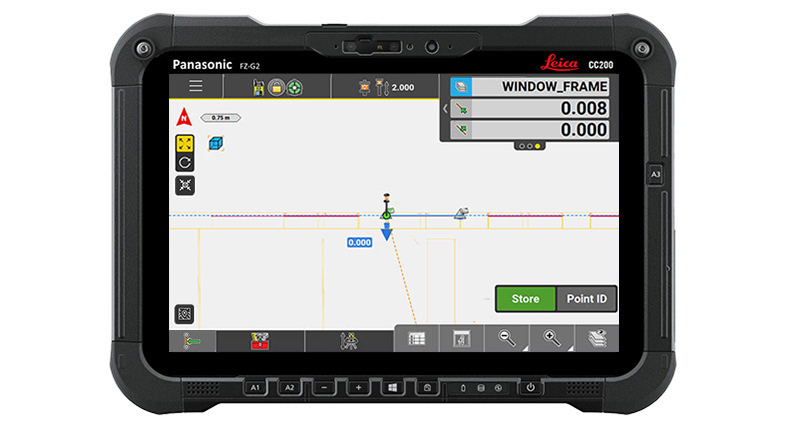

Leica iCON CC200
A high-durability controller for the most demanding on-site requirements.
- The ideal solution for all on-site positioning and measuring tasks, including on-machine applications
- Ready to withstand even the toughest site conditions, featuring ‘rain’ and ‘glove’ modes Large 10’’ screen with more map visibility
Leica iCON CC180
A well-rounded and compact controller for all construction tasks.
- 8” LCD (1280 x 800) Display with a comprehensive work view for increased productivity
- Intel 12th Generation processor to swiftly load and process large and complex designs swiftly
- Finger/rain, glove or stylus operation modes
- Excellent connectivity with up to 500 m when operating with a Leica iCON total station
VIEW PRODUCT
Leica iCON CC170
The ideal field controller for customers seeking a versatile, lightweight and small-sized field controller.
- Full-LTE support and one modem for all regions
- Optional Long-range Bluetooth® allowing connectivity and operation up to 600 m away from the total station
- Hot-swappable batteries, eliminating the need to stop and save your work or quit applications when the battery needs changing
Leica Nova MS60 MultiStation
The ultimate all-rounder, combining total station functionality with 3D laser scanning for efficient layout, as-builts and verification tasks.
- 3D laser scanning, enabling you to scan up to 30,000 points per second
- Highest performing sensor for construction
- Advanced analysis of constructed elements vs design, no matter how complex, with the iCON verification app
