Detection Accessories

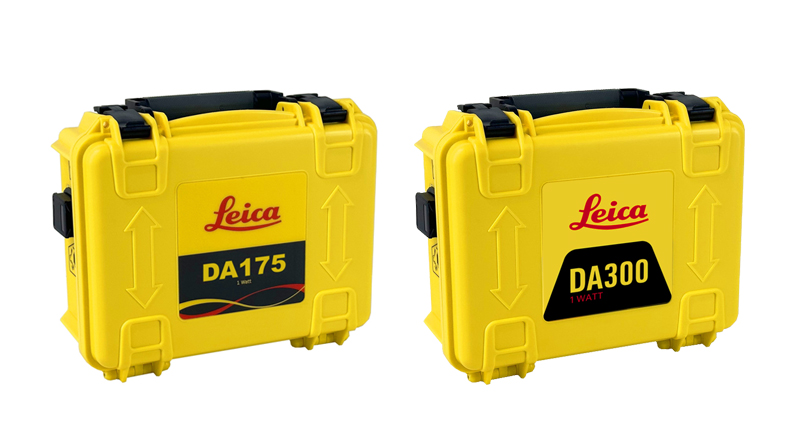

Leica DA Signal Transmitters

The Leica Signal Transmitters extend the applications and scope of the DD series cable locators, as the signal transmitters help improve the detection and tracing of buried utilities, which may carry only a poor signal or no detectable signal, they can also be used to locate some non-metallic utilities. The Leica DA signal transmitters apply a signal onto underground cables or pipes that may not carry a detectable signal. The Leica DD cable locators can then be used to locate the signal from the Leica DD signal transmitter.

• To improve the detection success.
• To trace the route of a utility.
• To make a depth or current measurement.

Tracerod

Makes locating small, non-metallic drains, ducts or pipes quick and easy and is available in 30, 50 or 80 metre lengths. This can be inserted and pushed along the buried utility under investigation when connected to a DA signal transmitter and the signal traced on the surface by a DD cable locator.

MAXiSONDE (8kHz & 33 kHz)

A 55mm dual frequency sonde can be used to trace deep lying drains, sewers and other non-conductive utilities. It acts like a signal transmitter, can be attached to a wide range of equipment and has a depth range of 12 metres.

Midi Sonde (8 kHz & 33 kHz)

A compact dual frequency sonde that can be used to trace drains, sewers and other non-conductive utilities. It acts like a signal transmitter, can be attached to a wide range of equipment and has a depth range of 5 metres.

Multi Clamp (512 Hz, 640 Hz, 8 kHz, 33 kHz)

This 80mm clamp is the ideal solution for highly congested underground areas, where you are trying to locate a specific utility. To be used in conjunction with a DA signal transmitter.

Signal Clamp (33 kHz)

This 100mm clamp is the ideal solution for highly congested underground areas, where you are trying to locate a specific utility. To be used in conjunction with a DA signal transmitter.

Property Connection Set

The set provides a safe way of applying a detectable signal to live electricity cables going in a domestic property. To be used in conjunction with a signal transmitter.
