Leica Captivate Rail App – Streamline rail construction & maintenance

One app to stakeout and layout rail alignment and compare as-built rails against track designs

Surveyor checking tracks with MS60 scanning total station and CS30 field controller showing a Leica Captivate field sofware Rail App screenshot.

Accurate railway surveys play a critical role in the design, construction, and maintenance of our rail infrastructure. From collecting measurement data to precise staking, to as-built verification, surveying enables effective track design and helps ensure railway lines can operate safely. The Leica Captivate Rail app provides all the functionality needed to layout and measure rail alignments and position efficiently and effectively.



Leica Captivate Rail App - Improving track design and rail alignment tasks



Stake alignments and check rails against design

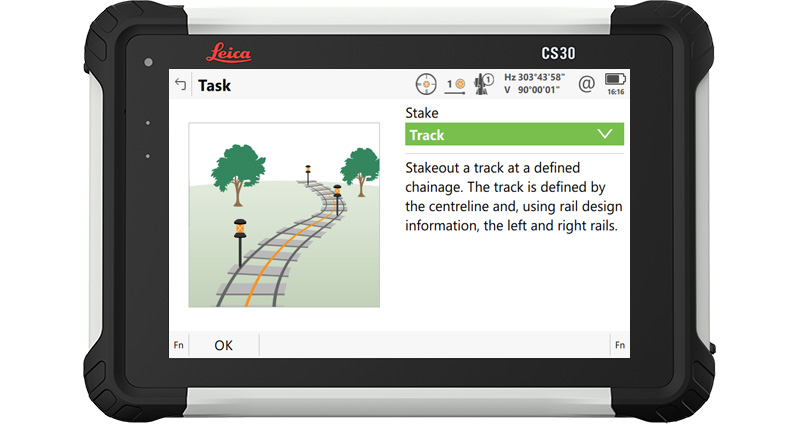

With the app divided into two parts dedicated to different stages of rail surveying tasks, the Leica Captivate Rail app ensures you have the digital tools you need for the task at hand. The first part of the app enables stakeout and layout of a new track, while the second part is customised for measuring on the rails and comparing against the design.

Track alignment, super-elevation, and gauge

The Leica Captivate Rail app was designed with features to streamline rail-specific survey tasks. For example:

  • Measure rails using the track super-elevation to provide cant-corrected displacement values.

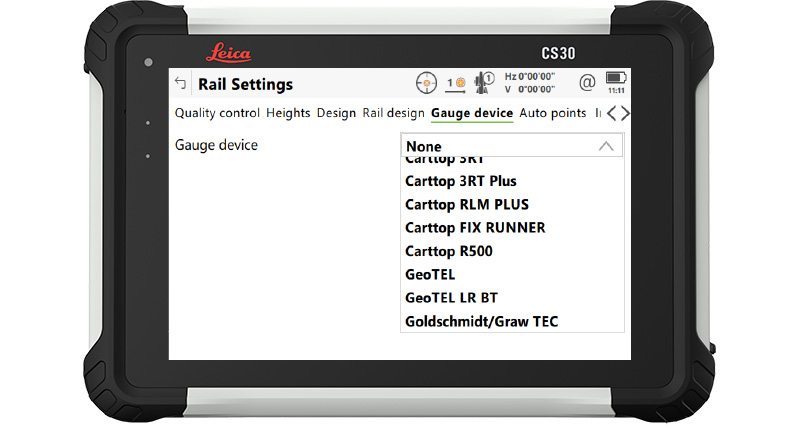

  • Pair a range of gauge devices with the Rail app, which automatically applies device-specific settings when selected.

  • Work with different track design information, including centerline and rail, centreline only or horizontal rail alignments only.




Captivate Quick Tip

Did you know there is an easy way to provide reports about staked points directly in the field? The Export Cut Sheet tool in the Captivate Rail app Toolbox allows exporting data with different formatting and content from the same job, right in the field. While the overall job can contain a mixture of data (measured, control, staked), only stakeout data would be relevant for such a report.

To use, simply select a name, delimiter and whether you want to include headers, then select the content for your report. You can save several definitions and use as needed.
