Leica DT100 - Cable and Pipe Precision Locator

Outstanding performance at your fingertips for underground utility detection and mapping

Introducing the new Leica DT100, created to redefine the standard for precision locators, delivering a robust solution designed to meet the high expectations of industries like construction, utilities, and surveyor companies.

Its ergonomic design allows users to acquire easily over long periods of use, providing an optimized user experience and maximum flexibility in surveying. The system locates underground utility lines with the highest accuracy thanks to its intelligent signal processing with unique flexible operating modes; this advanced system locates the underground utility network with outstanding precision and reliability providing users with ease and flexibility across all the surveying workflow.

Paired with the DE100 transmitter address key market demands, including high accuracy, ease of use, and real-time feedback. With its intuitive interface, it allows operators to quickly perform complex location tasks with precision, making it accessible to both experienced and new users alike.

No great detection without an Outstanding Transmitter

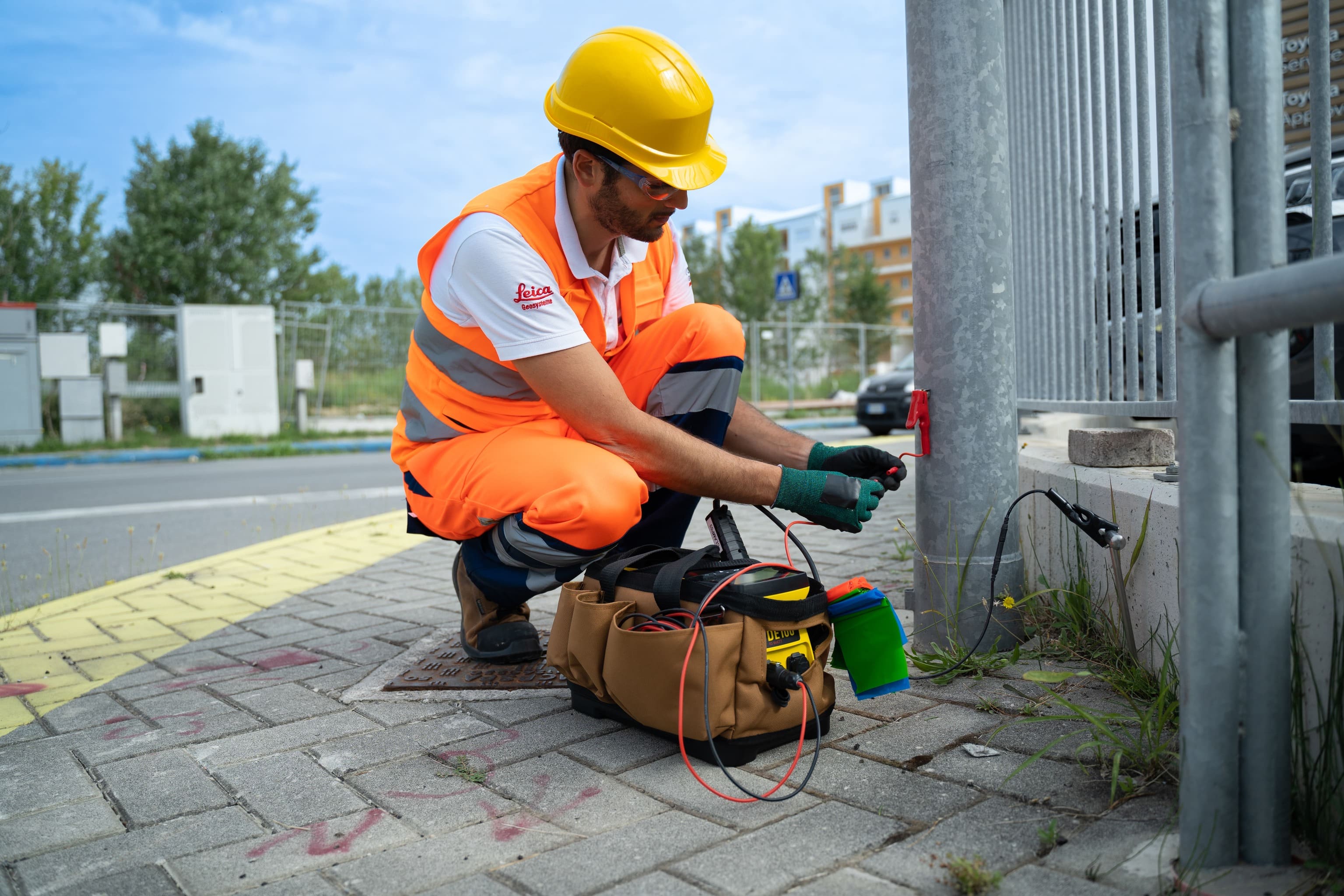

Leica DT100 system is integrated with the DE100, a 10-watt signal transmitter capable of delivering up to 1A of maximum current, enhancing signal transmission along utilities. It features dual output ports, allowing for the connection of two accessories simultaneously. The preferred accessory can be selected with the press of a single button.

Furthermore, thanks to the information showed on the embedded display, it is possible to immediately evaluate whether the signal flows correctly within the utility.

Powerful Performance, simple interface

The new approach to displaying peak and null signals is not only easy to understand but guarantees reliable and accurate identification of the user to be searched for.

Thanks to the frequency analysis tool, the user is guided in a simple and intuitive way, in choosing the best frequency to use in that specific environment.

All this combined with the possibility of being able to count on a menu translated into multiple languages, makes the Leica DT100 a tool that allows users to start working immediately without extensive training.

All the Information You Need to Ensure Reliability and Safety in Your Work

The embedded display on the Leica DE100 Signal Transmitter is able to show the current, voltage and impedance values of the circuit created with the line to which the system has been connected. This is helpful to identify the quality of the located signal.

Combined with the signal frequency analyser, it allows the user to have an accurate view of the environment and the quality of the signal delivered.

In addition the transmitter is able to alert the presence of hazardous voltages.

The Leica DE100 will check for the presence of High Voltage on the output ports promptly alerting the user if a voltage potentially lethal to the user is measured.

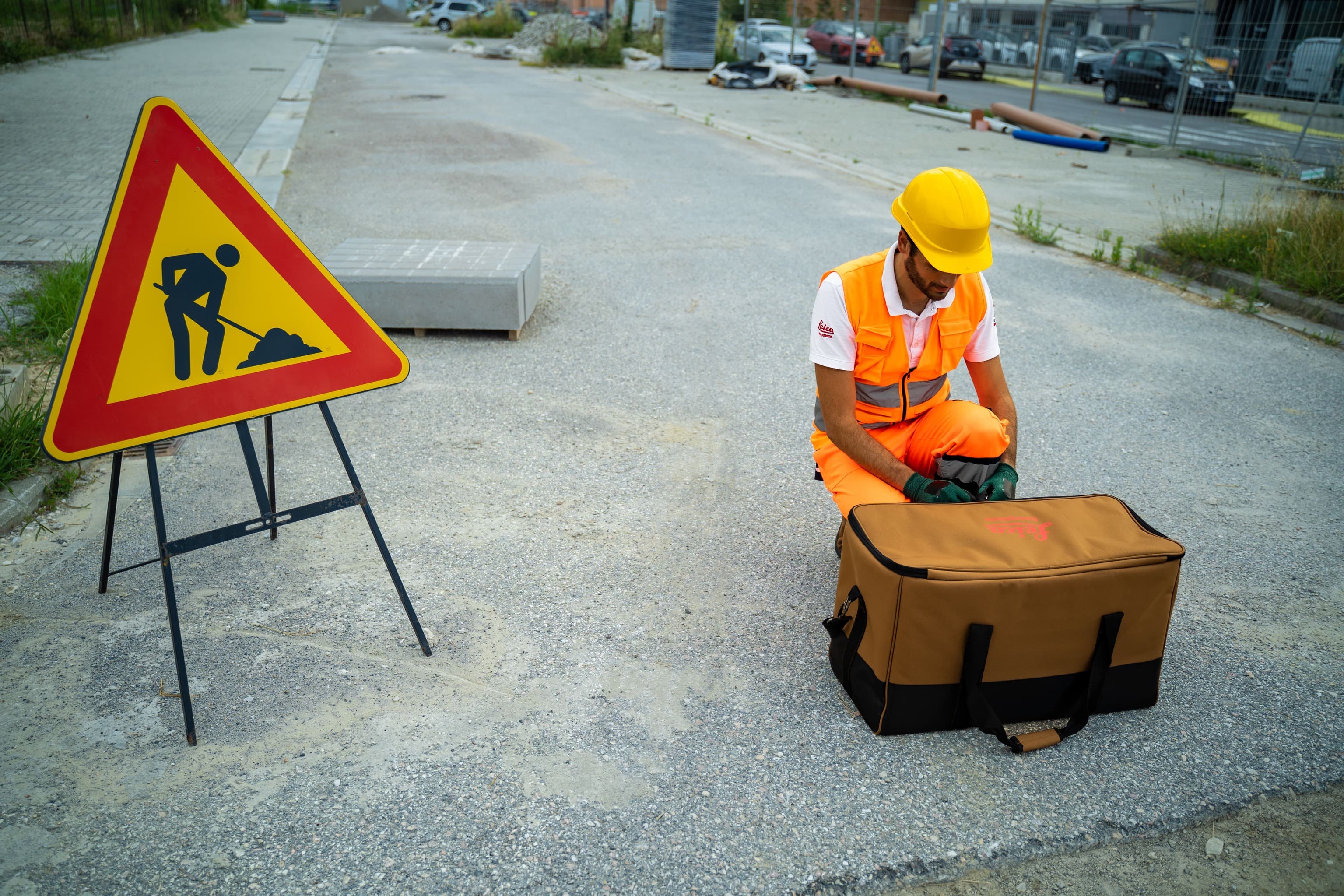

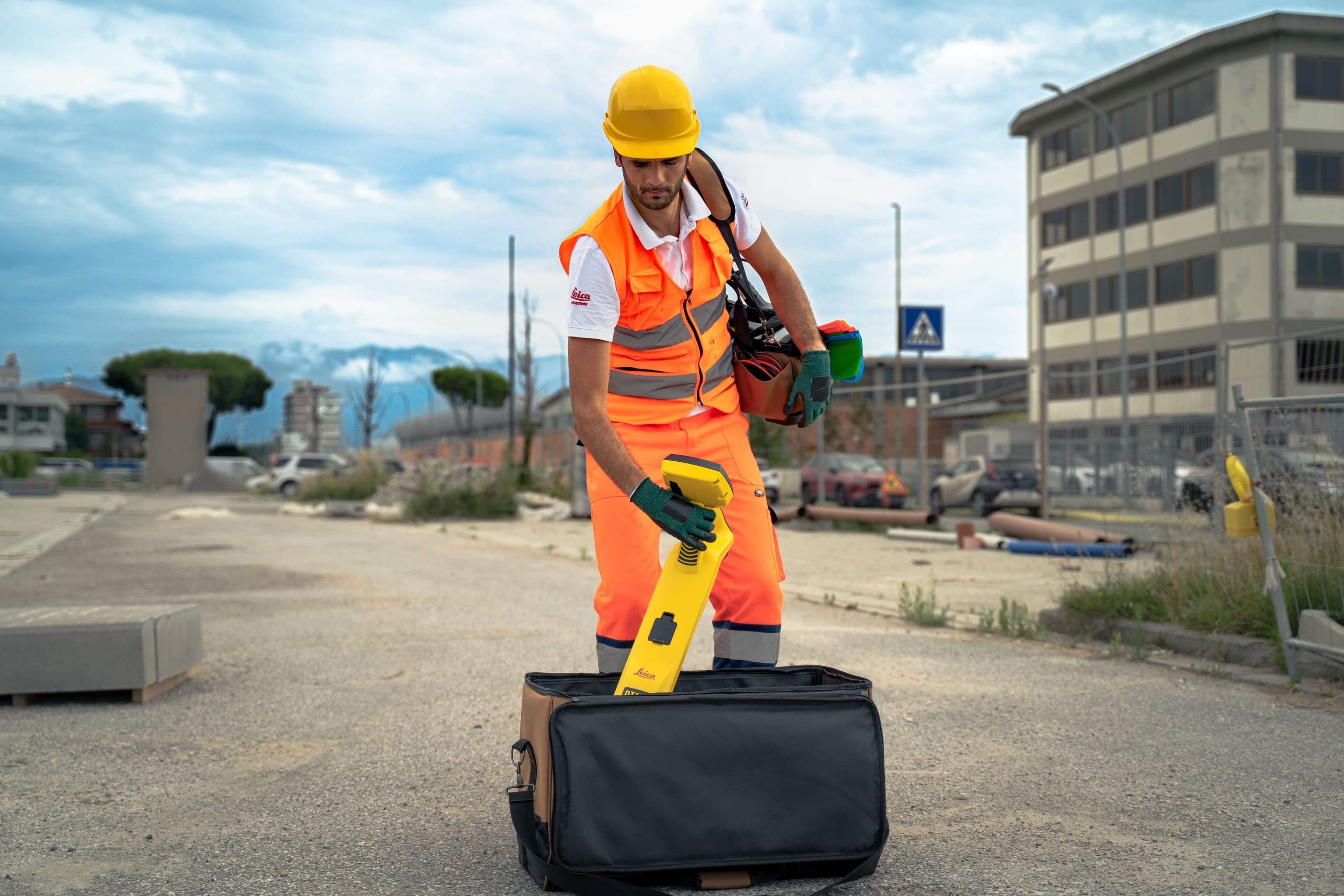

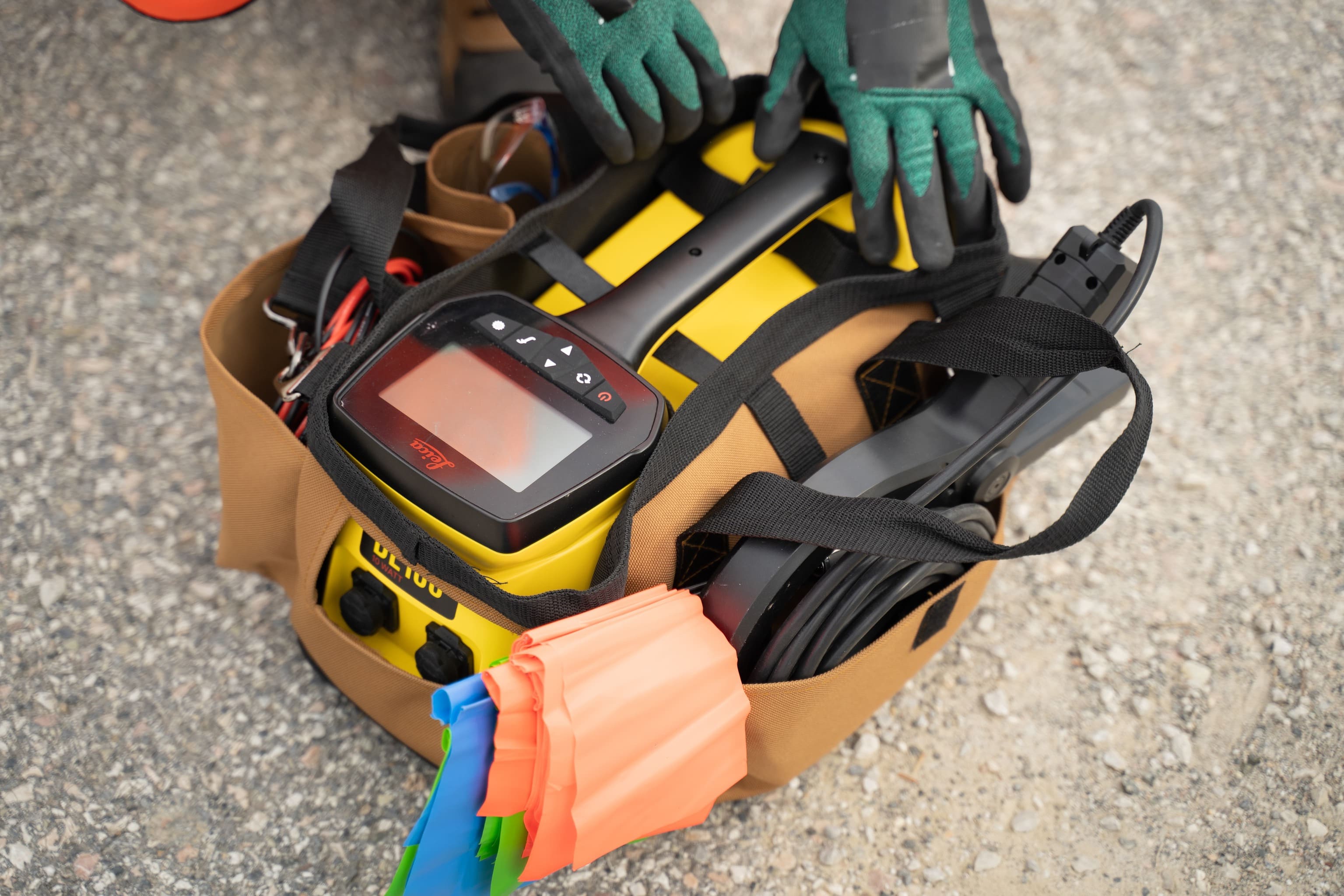

Everything you need is in one bag

The new Leica DT100 and DE100 system is equipped with all the accessories necessary to carry out field work.

From the connections leads with removable head, to the availability of 2 different earth poles, passing through a clamp that can be used both as a transmitter clamp and as a receiver clamp, there is everything you need to be able to carry out your construction site activities without worrying about carrying other instruments in the field.

Battery Life and Ergonomics: Unlimited Performance for Field Applications

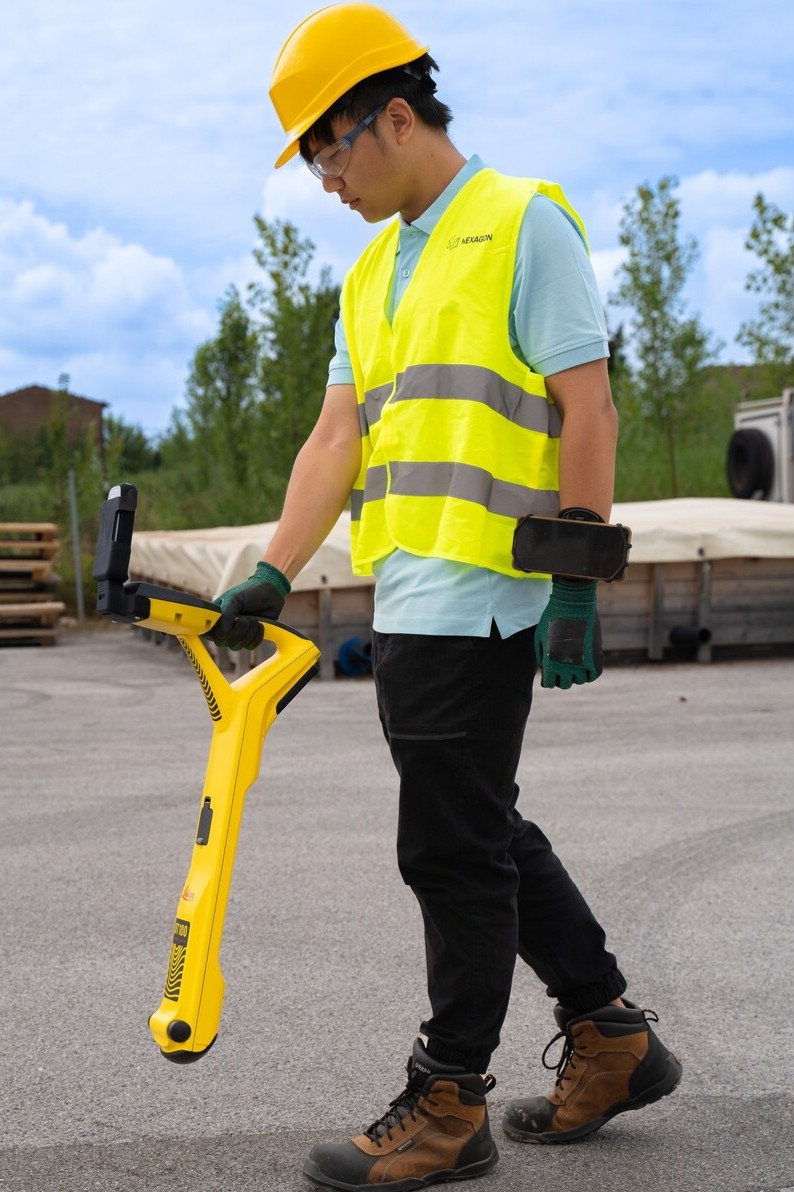

DT100 boasts an impressive battery life of up to 15 hours on a single charge, ensuring reliable performance throughout your field applications. Additionally, it comes equipped with an adapter for alkaline batteries, providing even more flexibility. Weighing in at just 2 kg, the receiver is designed for prolonged use, making it an ideal choice for demanding environments.

The transmitter extends this capability further, reaching up to 17 hours of operation.

Connected and simplified workflow

Optimise your semi-automated monitoring workflow with the seamlessly connected Captivate TPS Monitoring app and GeoMoS Now! Survey Edition. Total station measurements, calculations, and instant notifications are completed with the Captivate TPS Monitoring app before data is automatically imported into GeoMoS Now! Survey Edition. Here you benefit from real-time visualisations on your personalised dashboard and automated, fully customisable reporting – all accessible wherever you are from your tablet or smartphone over a browser.

Real-time visualisation

Real-time measurement visualisations ensure you are up to date with the deformation data you need, wherever you are. GeoMoS Now! Survey Edition provides visualisations of calculated displacements on your customised dashboard as soon as data is imported from Captivate – so you immediately see and share the most relevant information. Visualise displacements on a map, select from a variety of chart types and raster or vector backgrounds, and create tables for automatically updated value tracking. Access your data securely in the field or any other location over any smart device without travelling back to the office for data processing, saving time and enhancing efficiency.

Personalised dashboards

With a range of visualisation customizations for calculated results, your personalized dashboard provides easy access to an overview of essential and up-to-date displacement data for your project. Customize what you see by selecting charts and graphs with different metrics, adding dataset layers, set thresholds values for different limit levels, and visualize critical deformation levels. With 16 templates, including timeline and vector graphs, scatter plots, bar charts, contour graphs, and more, you can see all the information you need in the visual package best suited to your project. Additionally, charts and maps are automatically updated each time new data is imported so that your custom dashboards are always current.

Customised and automated reporting

Save even more time with fully automated, customizable reports. GeoMoS Now! Survey Edition allows you to provide results with professionalism by creating reports from fully tailorable templates featuring your company branding. Automate these reports to be generated and sent at defined intervals to a designated list of recipients and be confident that your results are getting to the right stakeholders, at the right time.
